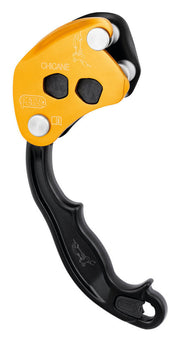

CHICANE AUXILLARY BRAKE FOR MECHANICAL PRUSIK ON SINGLE ROPES

• Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:
  - continuous additional braking action, thanks to the added friction of the two friction pins
  - used with an Am'D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents
  - ergonomic handle facilitates movement while limb walking

• Easy installation:
  - openable side plate for quick and easy installation on the rope
  - triple action unlocking limits rick of accidentally opening the side plate
  - connects on the upper hole of the mechanical Prusik

• Optimized durability, thanks to the two friction pins, available as spare parts

• CHICANE allows the user to work in compliance with the ANSI Z133 standard

• Material(s): aluminum, steel, nylon
• Weight: 255 g
• Min. rope diameter: 11,5 mm
• Max. rope diameter: 13 mm
• Rope compatibility: EN 1891 type A low stretch kernmantel ropes
• Working load limit: 140 kg
• Certification(s): CE
