Petzl

MINI TRAXION

P054AA00

$219.95 Save $-219.95
/
Shipping calculated at checkout.
Only 0 items in stock!

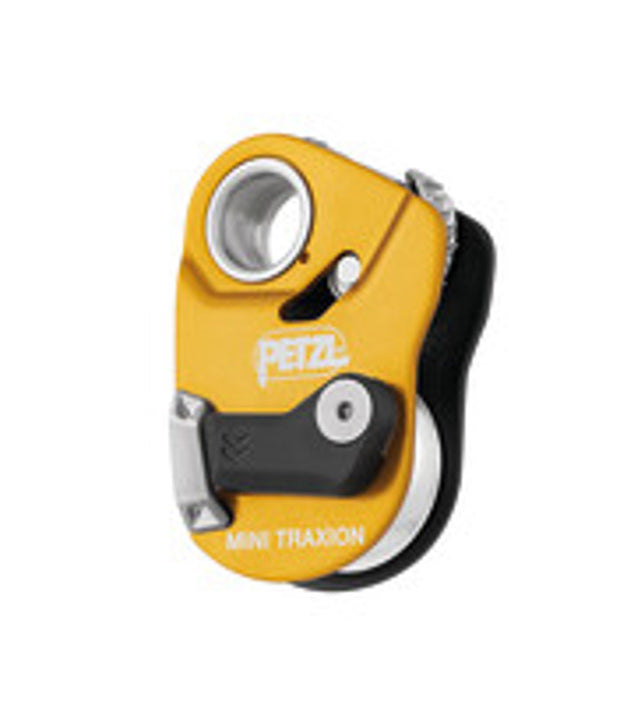

Compact and drop-resistant high-efficiency progress-capture pulley

Possible to open, even when attached to the anchor, the MINI TRAXION progress-capture pulley is designed for setting up haul systems. With a medium-diameter sheave and great efficiency, it is particularly suitable for hauling mid-weight loads. Compact, reducing weight and bulk, which is especially useful during technical rescue and rope access work.

Description

  • Drop-resistant and easy to operate:
    - Triple-action opening of the moving side plate is quick and easy, even with gloves
    - Rope can be installed when the pulley is connected to the anchor
    - Red indicator provides a visual warning when the moving side plate is unlocked
    - Special side plate design protects the rope path
  • Designed for hauling mid-weight loads:
    - Mid-size diameter aluminum sheave mounted on sealed ball bearings for great efficiency
  • Versatile:
    - Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
    - May be used as a simple pulley by locking the cam in the raised position
    - Hole in the cam for installation of a remote control cord

Specifications

  • Weight: 150 g
  • Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11
  • Material(s): Aluminum, stainless steel, nylon
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 11 mm
  • Sheave type: Sealed ball bearings
  • Sheave diameter: 32 mm
  • Breaking strength - pulley: 10 kN x 2 = 20 kN
  • Breaking strength - rope clamp: 4 kN
  • Efficiency: 93 %
