Rock Exotica

OMNI-BLOCK

P54-O

Regular price $143.95 Save Liquid error (snippets/product-template line 120): Computation results in '-Infinity'%
/
Shipping calculated at checkout.

Only -7 items in stock!

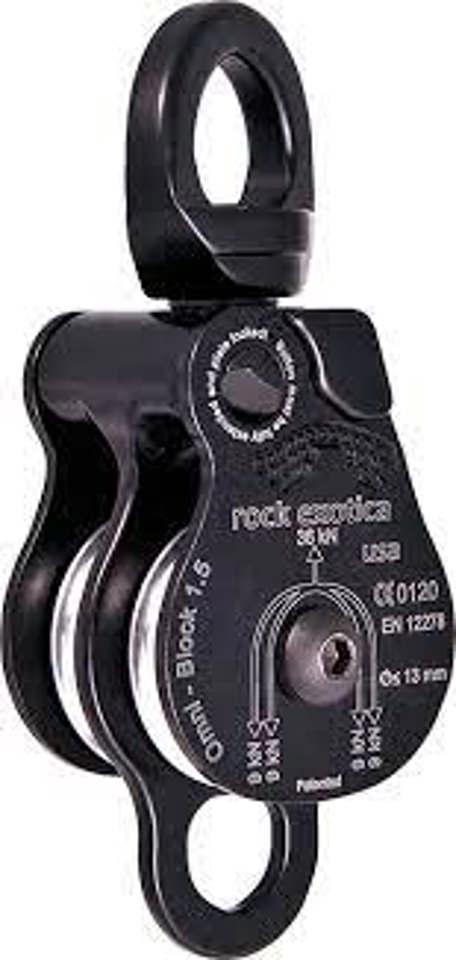

The Omni-Block combines a swivel and pulley into one tool, and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Available in single and double sheave versions from 1.1" radius up to 2.6". Made in the USA.

FEATURES & BENEFITS

The Omni-Block combines a swivel and pulley into one tool, and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Traditionally, a pulley is connected to a swivel by a carabiner. However, the Omni eliminates the need for the carabiner, reducing length and pieces of equipment in the rigging system. The short length of the Omni is important when used in high-angle, confined space or other space-sensitive rigging environments. The reduced weight of the Omni will make hauling your gear easier. Additionally the Omni sideplate can be opened without detaching from the carabiner. Traditional pulleys require removing from the carabiner to change the rope. With the Omni, the user is able to do this while the pulley is still secured.

  • Install and remove rope while still connected to the anchor
  • Sideplate locks with two-stage, double-catch safety mechanism
  • Integrated swivel allows pulley to orient while reducing gain
  • Connect, install and remove rope with one hand
  • CNC machined for optimal weight & strength
Model Weight MBS WLL Max Rope Dia Certification

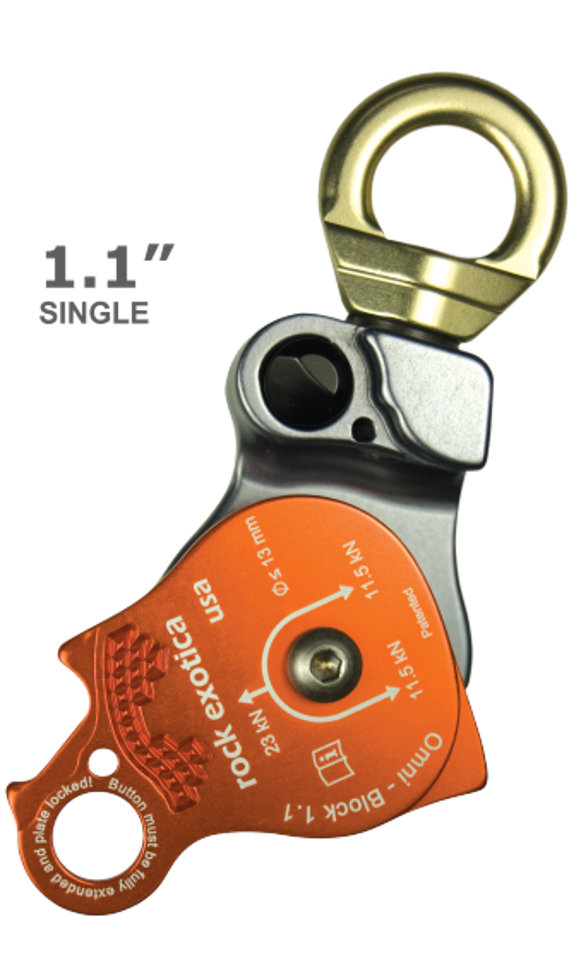

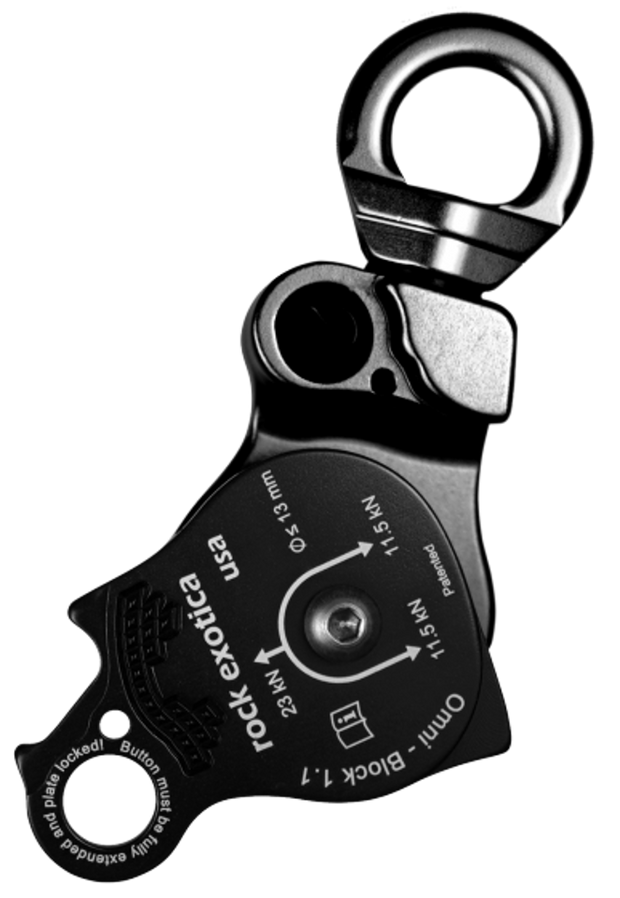

1.1" Single 5.1oz (145gm) 23kN 5kN .5" (13mm) CE

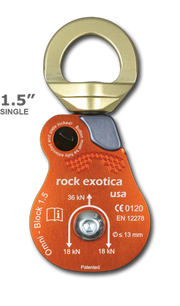

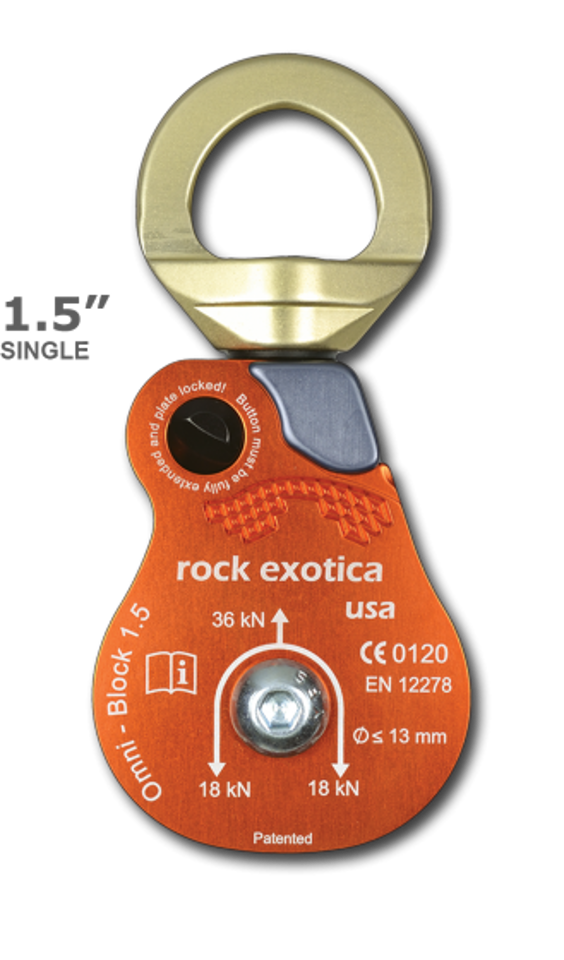

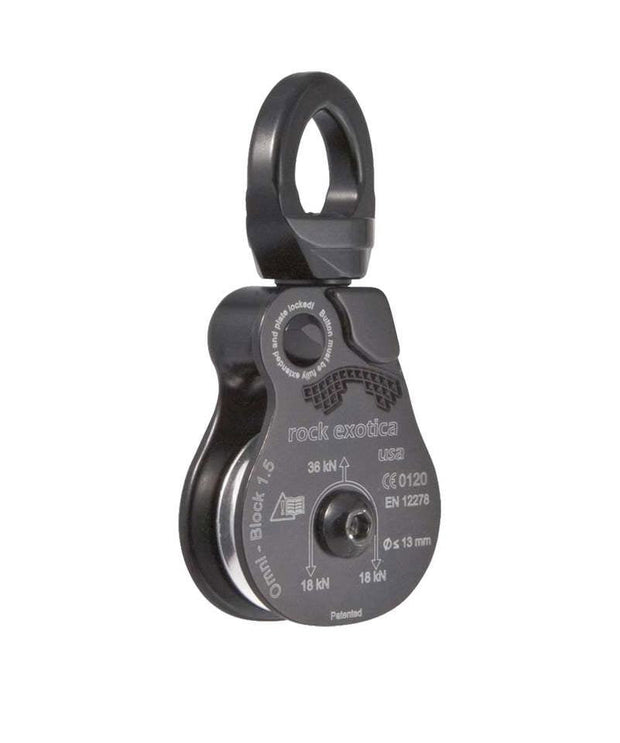

1.5" Single 9.2oz (260gm) 36kN 8kN .5" (13mm) CE
1.5" Shackle-Top 10.7oz (303gm) 36kN 8kN .5" (13mm)
1.5" Stainless Sheave 10.7oz (303gm) 36kN 8kN .5" (13mm) CE

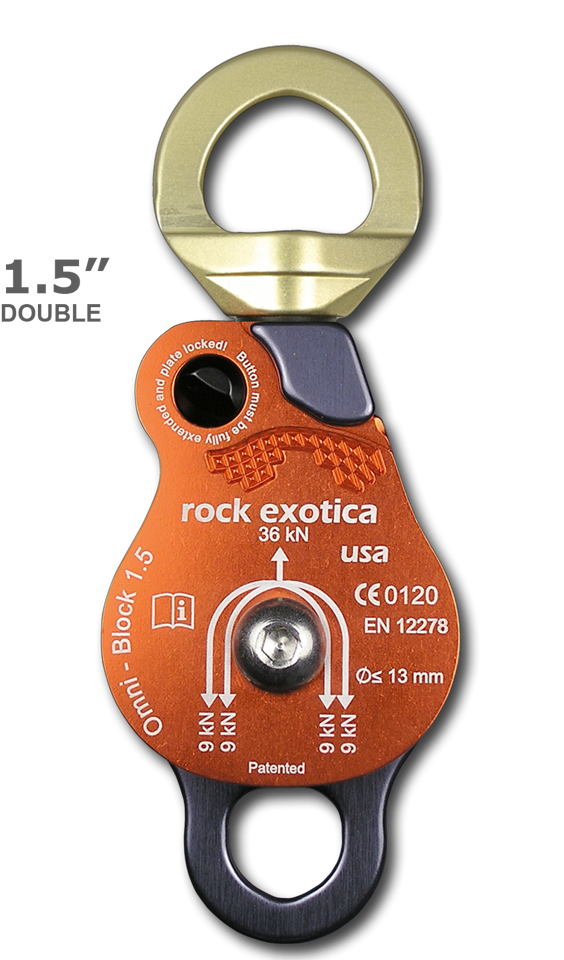

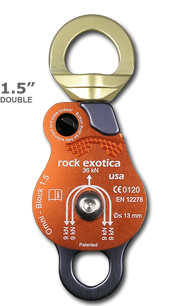

1.5" Double 14.5oz (411gm) 36kN 8kN .5" (13mm) CE

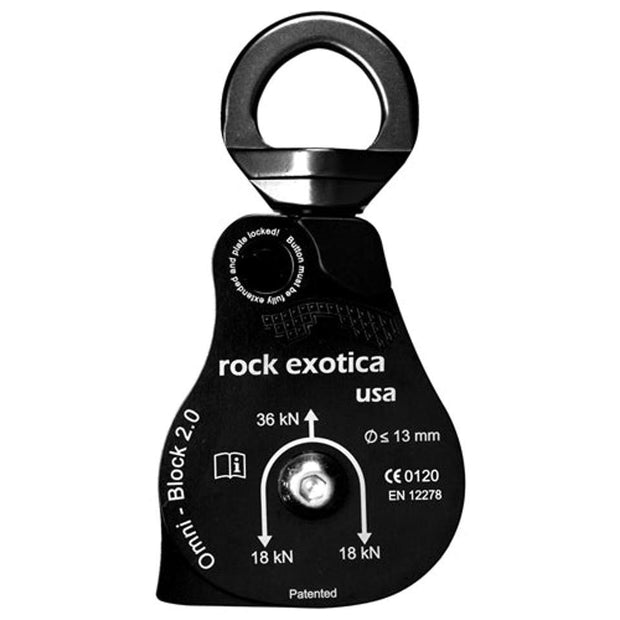

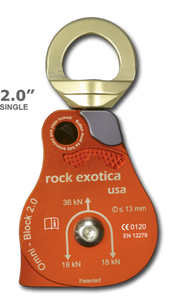

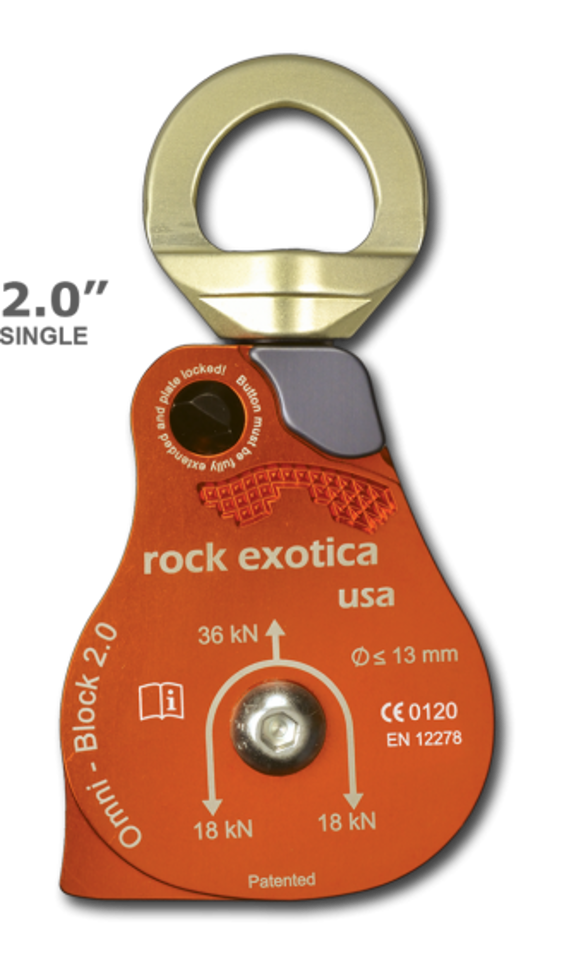

2.0" Single 12.3oz (348gm) 36kN 8kN .5" (13mm) CE

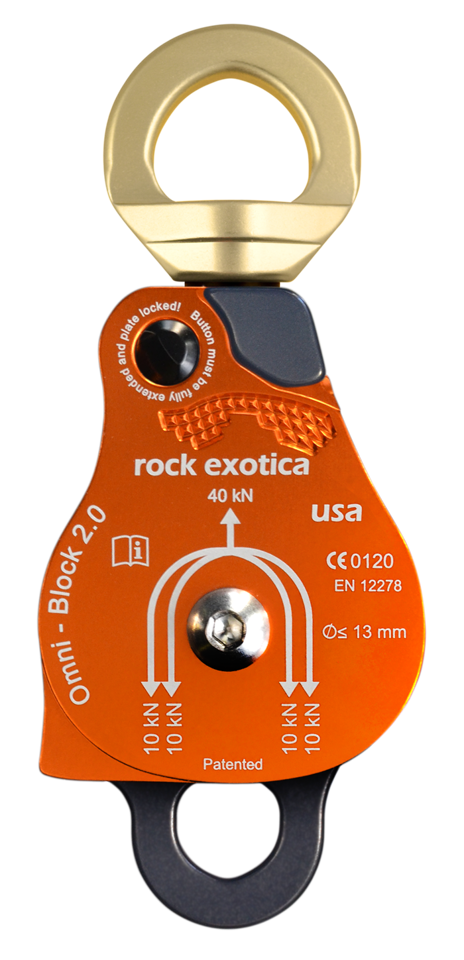

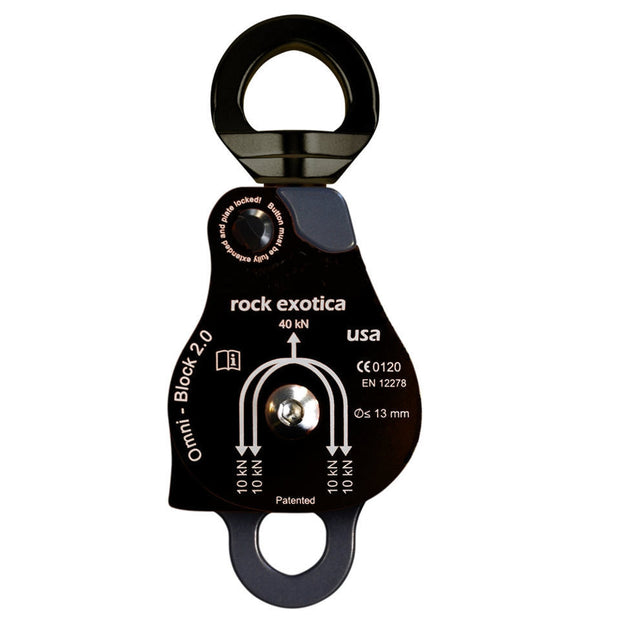

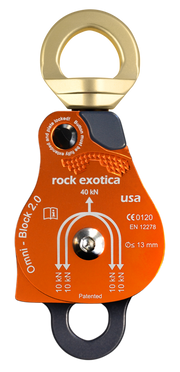

2.0" Double 20.9oz (591gm) 40kN 10kN .5" (13mm) CE

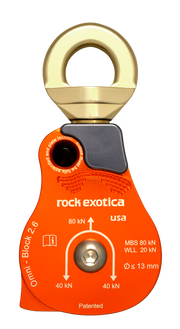

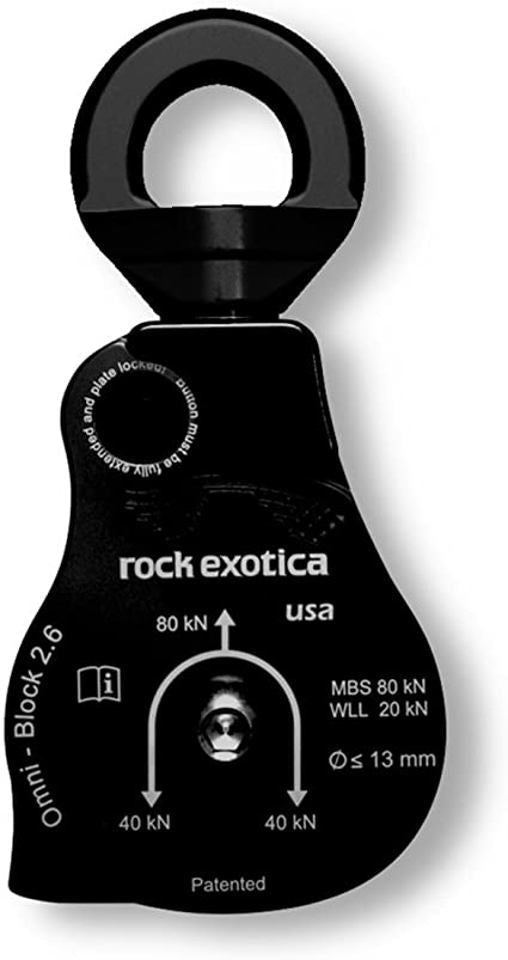

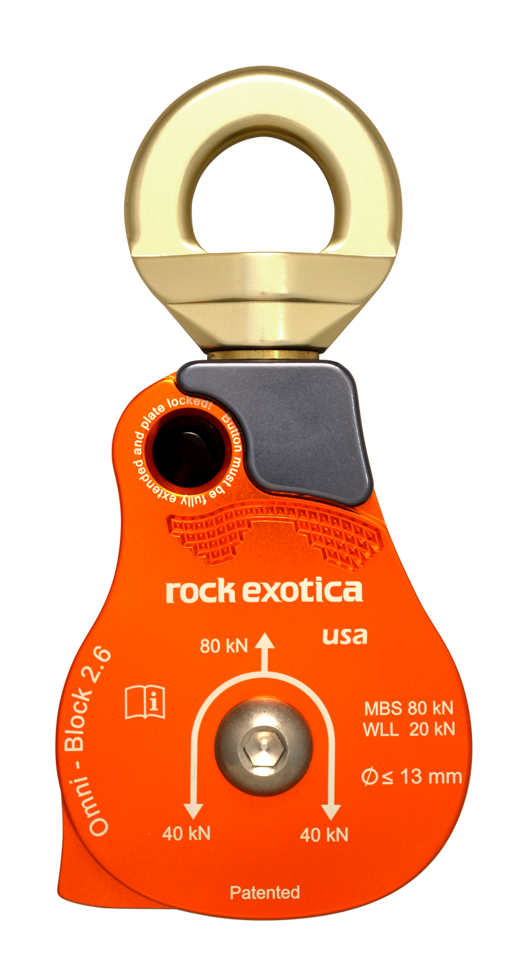

2.6" Single 1.9 lbs (850gm) 80kN 20kN .5" (13mm) CE
